Dough Stamping Machine
Dough Stamping Machine
Model: Paratha Stamping Machine
Craft Authentic Product with Precision and Care

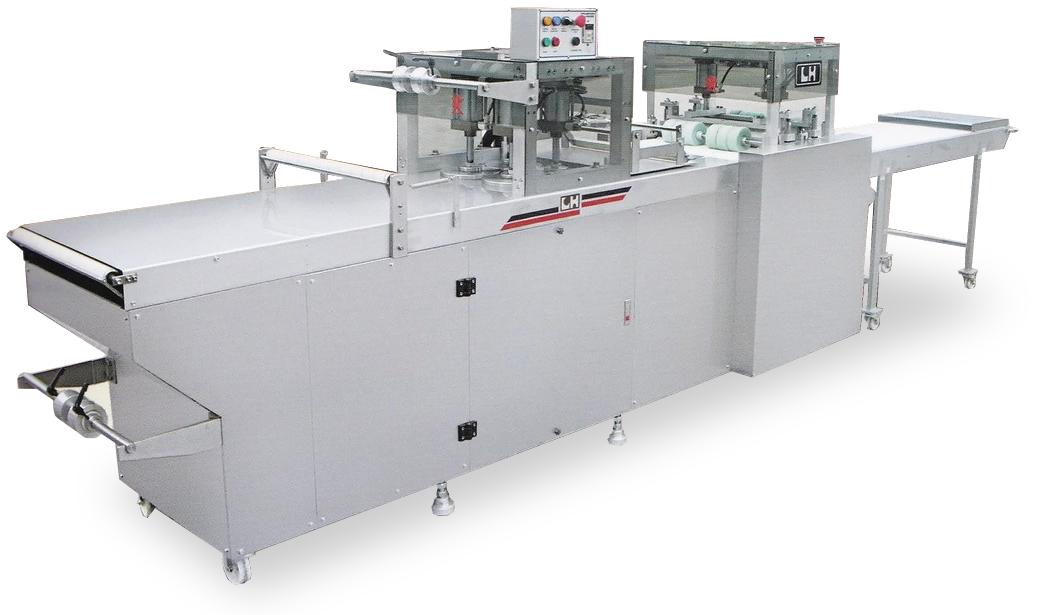

The Lian Huat Dough Stamping Machine is designed to press pre-divided round dough portions into flat, round dough sheets for paratha production. It provides a dedicated dough stamping solution for commercial and industrial bakery operations, where consistent dough shaping is an important part of the production process.
The machine can be supplied as part of Lian Huat's Paratha Line or operated independently as a downstream processing machine within an existing dough production setup. This provides flexibility for customers who require a dedicated stamping process without investing in a complete production line.
Available with selectable pneumatic or hydraulic pressing systems, the machine allows customers to choose a configuration based on their production capacity requirements and budget considerations.
Performance & Engineering
Selectable Pneumatic or Hydraulic Pressing Systems
The Dough Stamping Machine is available with two pressing system options: pneumatic pressing and hydraulic pressing.
The pneumatic configuration uses compressed air to drive the pressing mechanism through pneumatic cylinders, while the hydraulic configuration uses hydraulic power to operate the pressing mechanism.
Both configurations perform the same fundamental stamping function. Customers can select the appropriate system according to their production requirements, desired machine configuration and investment budget.
Adjustable Stamping Pressure and Pressing Time
The machine provides adjustable stamping pressure and pressing time, allowing operators to modify the pressing conditions according to the dough characteristics and processing requirements.
Stamping pressure can be adjusted through the machine's control system, providing operational flexibility when handling different dough conditions and input portion sizes.
Dual Roll-Fed Film System
To prevent direct contact between the dough and pressing plates, plastic film is used on both sides of the dough during the stamping process.
The film supply system consists of two independent rolls, with one supplying the upper film and the other supplying the lower film. This arrangement maintains a protective film layer between the dough and the pressing surfaces during stamping.
Automatic Cycle-Based Film Advancement
The upper and lower films are equipped with an automatic film advancement mechanism.
Following each stamping cycle, the film advances automatically to prepare a fresh section for the next pressing operation. This cycle-based arrangement maintains the film supply throughout successive stamping operations while reducing the need for manual film repositioning between pressing cycles.
Paratha Stamping Machine
Dimension (mm)
5580 x 850 x 1400 (W x L x H)
Motor
0.5 HP 3 Phase Induction Motor (Cutter), 60W Discharge Conveyor Motor
Electric Power (V)
Alternating 415 VAC, 3 Phase + (RST + N + PE)
Air Pressure (MPa)
8
Capacity (pcs/hr)
1800 (Depends on Pressing Time Required)
* All measured numerical values of the machine are estimated.
* All machine design and specification are subject to modification without prior notice.

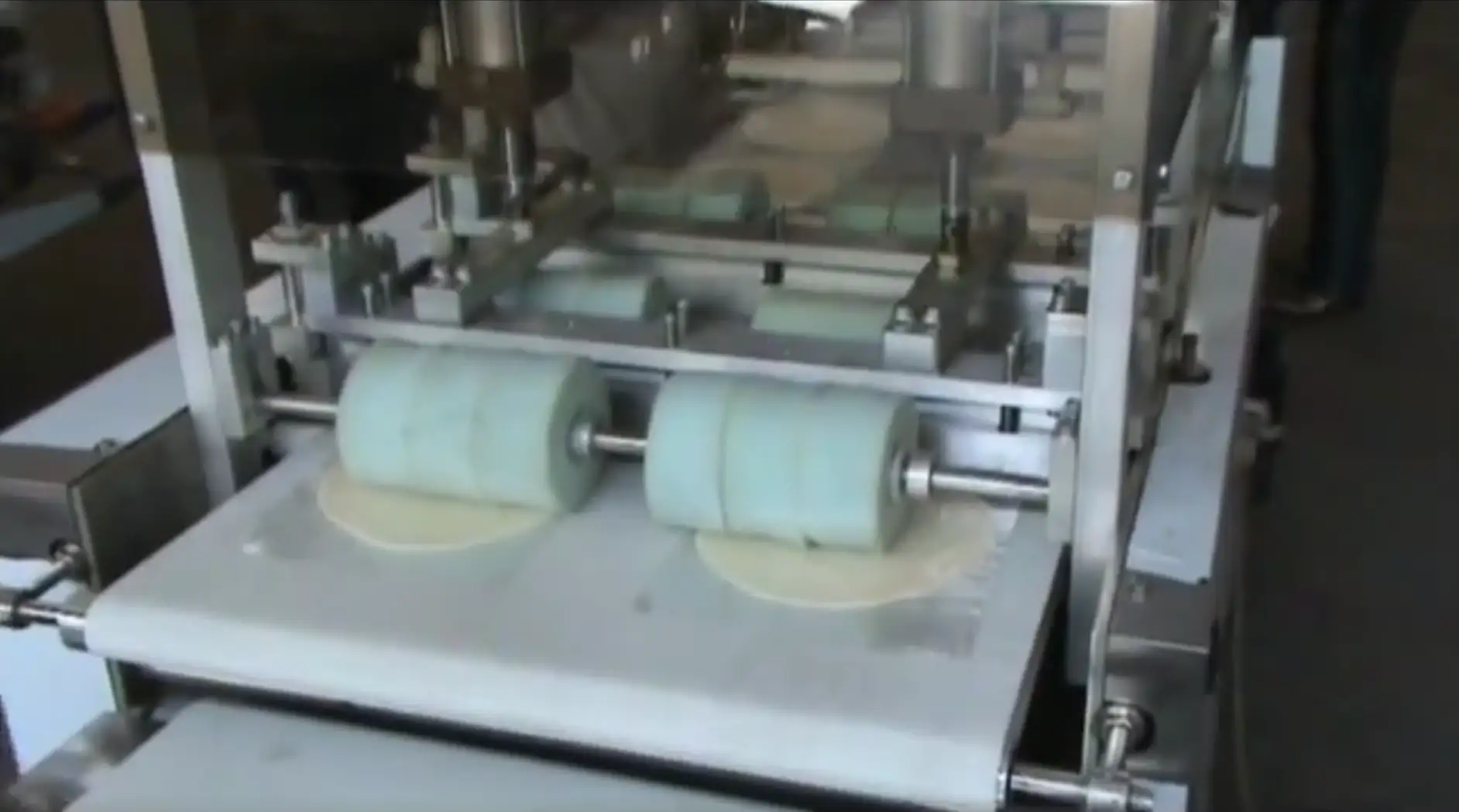

Product Videos
Frequently Asked Questions
Yes. The Dough Stamping Machine can be supplied as an independent downstream processing machine for customers who already have an existing dough preparation or paratha production setup. Purchasing the complete Lian Huat Paratha Line is not necessary.
Both systems perform the same fundamental stamping function but use different power sources. Pneumatic pressing operates through compressed air and pneumatic cylinders, whereas hydraulic pressing uses hydraulic power. The selection can be based on the customer's production capacity requirements and investment budget.
The final diameter and thickness depend on the size of the input dough portion. Different input dough weights produce different stamped dough sheet dimensions.
Plastic film is placed between the dough and the pressing plates on both sides to prevent direct contact during stamping. The machine uses a dual roll-fed arrangement with automatic film advancement to prepare fresh film sections for successive pressing cycles.
