Automatic Band Slicer
Automatic Band Slicer

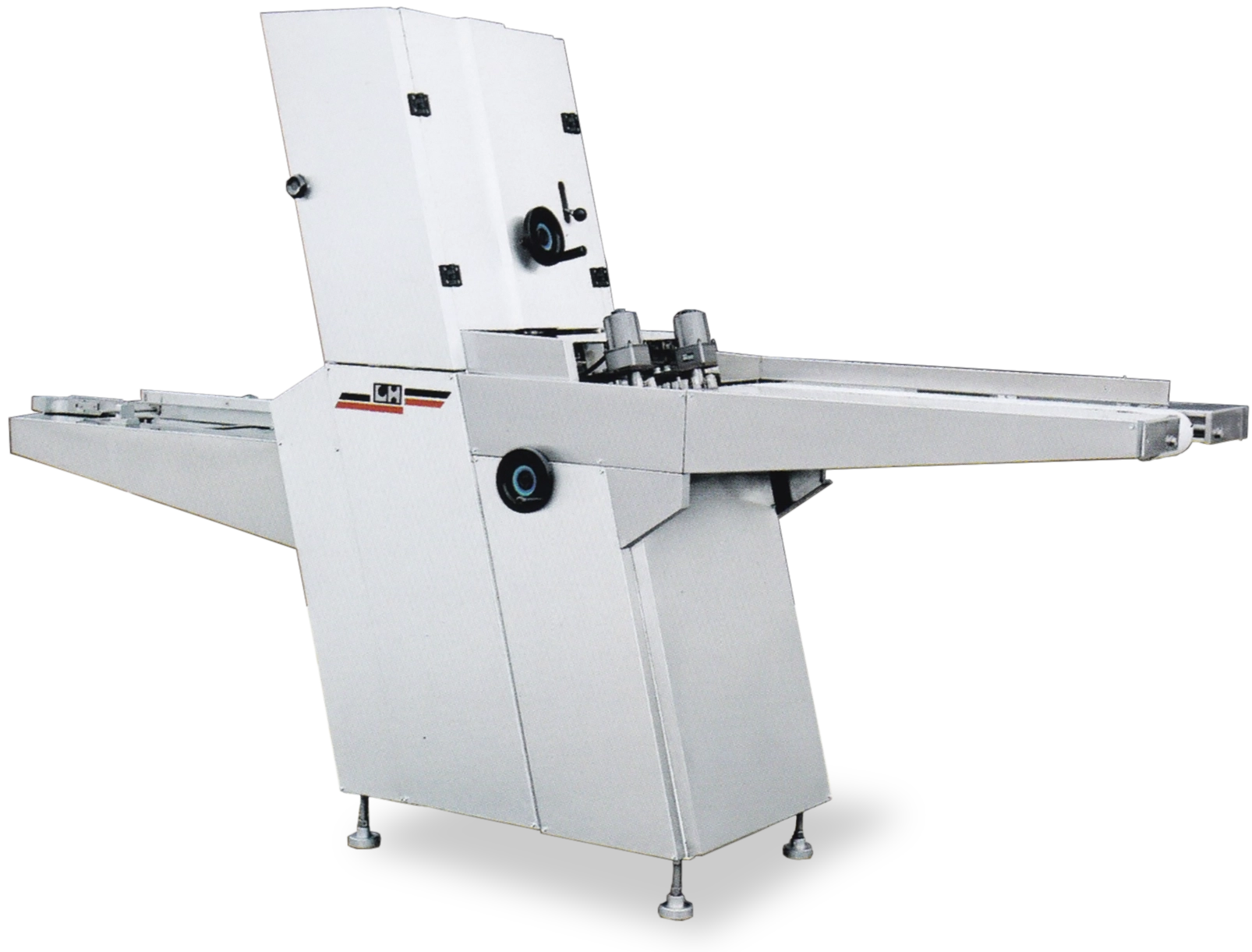

Model: ABS 3000
Precision Slicing with High-Quality Band Blade
The ABS 3000 Automatic Band Slicer is an industrial slicing machine designed for continuous loaf slicing in commercial and industrial bakery operations. With a production capacity of up to 2,400 loaves per hour, it provides an automated slicing process for bakery production requiring consistent and continuous loaf handling.
The slicing thickness is specified according to the customer's product requirements, with the machine configured accordingly for the required application.
The ABS 3000 can also be used as the first stage of a slicing and packaging line. It can be connected with Lian Huat's Bag Loader and Bag Closer to form a connected downstream packaging process according to the customer's production requirements.
Performance & Engineering
Saw-Blade Slicing System
The ABS 3000 uses a continuous saw-blade slicing system for loaf slicing. The blade configuration is specified according to the required slicing thickness rather than adjusted during operation.
This allows the machine to be configured for the customer's specified loaf and slice requirements while maintaining a defined slicing setup during production.
2,400 Loaves per Hour
The ABS 3000 is designed for continuous bakery production with a capacity of up to 2,400 loaves per hour.
The production capacity makes the machine suitable for commercial and industrial bakeries requiring a dedicated loaf-slicing process as part of their production workflow.
Food-Grade Food-Contact Construction
All food-contact parts of the ABS 3000 are made from food-grade materials.
This provides an appropriate material configuration for parts that come into direct contact with bakery products during slicing.
Slicing and Packaging Line Configuration
The ABS 3000 can be positioned as the first stage of a connected slicing and packaging process.
Following slicing, it can be linked with Lian Huat's Bag Loader and Bag Closer, allowing the three machines to be arranged as a sequential production setup. This provides a practical configuration for bakeries looking to connect loaf slicing with subsequent bagging and closing processes.
ABS 3000
Dimension (mm)
910 x 2390 x 2090 (W x L x H)
Motor (hp)
3
Motor (kW)
2.2
Capacity (loaf/min)
40/minute = 2400/hr
Electric Power (V)
415
Current Ampere (amp)
6
Max. Size of Loaf (mm)
400 in Length, 260 in Height
* All measured numerical values of the machine are estimated.
* All machine design and specification are subject to modification without prior notice.

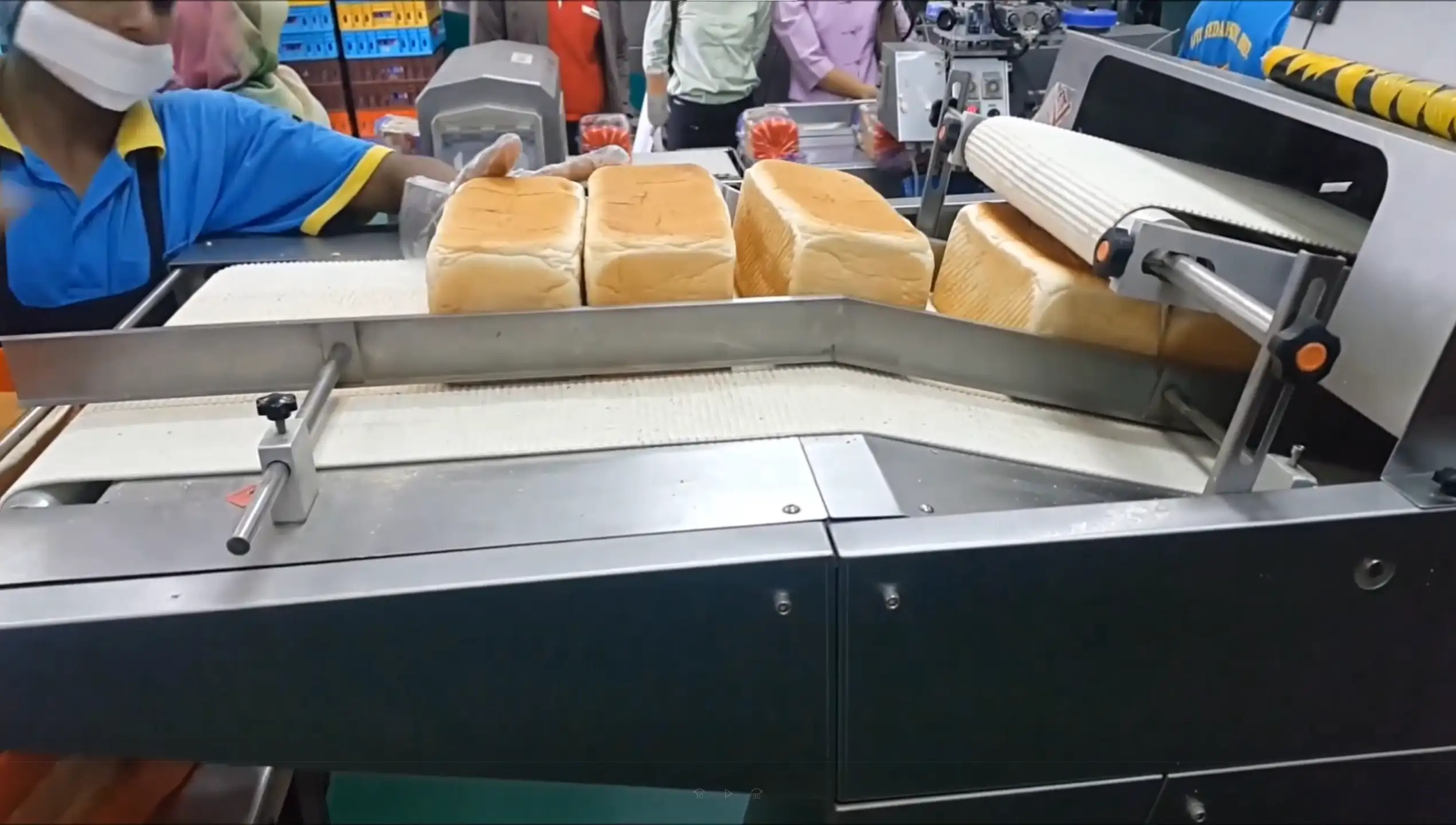

Product Videos
Frequently Asked Questions
The required slicing thickness is specified when configuring the machine according to the customer's loaf and production requirements. The blade is not designed for thickness adjustment.
Yes. The ABS 3000 can be configured as the slicing stage and connected to Lian Huat's Bag Loader and Bag Closer for subsequent packaging operations.
Yes. The appropriate machine configuration can be determined according to the required loaf size, slicing specification, production capacity, and downstream packaging arrangement.
